PVC Water Gun

Introduction

Inspired by the various 2-liter bottle water-powered rockets I’ve seen on the web, I decided to come up with a simple water gun using the same principles.

Water gun complete

The resulting water gun design costs about $10-12 in parts and only takes about 30 minutes to build. It’s powered by compressed air, like the old standard “super soakers”, but instead of compressing that air with a hand pump, this design pressurizes the air using the water pressure from a garden hose.

Operation

To fill and pressurize the water gun:

  1. Attach the water gun to a garden hose (a quick connect makes this easy).
  2. Close the discharge valve and open the fill valve.
  3. Turn on the hose (if needed) and wait while the water enters the bottle and plumbing.
  4. Close the fill valve.
  5. Disconnect the hose.

To use, just open the discharge valve. Just make sure you keep the water gun basically upright. See the video at the bottom of this page!

Water gun parts identification

Safety warning and disclaimer

If you build a water gun based on this design, you do so at your own risk. I’ve pressurized my water gun to the full pressure of my water supply and left it for several hours with no leaks or explosions, but there’s always the chance something might blow up.

Step 1: Gather the materials

I used mostly threaded PVC connections so that I could replace parts or reconfigure the design, but you don’t have to. This parts list reflects the layout shown in the pictures. All PVC pieces are 1/2″ diameter.

  • 2-liter soda bottle
  • 6 inch piece of 1/2″ PVC
  • 3 inch piece of 1/2″ PVC
  • tee with threaded side outlet
  • two 4 inch PVC nipples
  • 2 inch PVC nipple
  • threaded PVC cap
  • two threaded ball valves
  • garden hose adapter – hose to 1/2″ female threads (as seen here)
  • 1/2″ male adapter – female slip to male threaded (as seen here)
  • (optional) hose adapter quick connects

Step 2: Create the nozzle

The “nozzle” is just a small hole drilled in a PVC cap. A larger hole will produce a larger stream, but it won’t last very long between fills. Start with 1/16″ inch, and go bigger if you don’t like it.

Water gun nozzle

Step 3: Put a “bulge” in the bottle adapter

Take the 6 inch piece of 1/2″ PVC and heat a section of it with a heat gun.

heating the bottle adapter

Once the plastic is softened, press the ends of the pipe together, which will cause the heated section to flare out.

bulge in the bottle adapter

Press the pipe tightly into the opening of the bottle and allow it to cool. If it’s not really tight, heat the pipe and compress it again.

allowing the bottle adapter to cool

Step 4: Vent or trim the bottle adapter

The part of the bottle adapter pipe that protrudes into the bottle needs to be cut off or have holes drilled in it. For added strength, I left the pipe long and drilled some holes.

Mark around the rim of the bottle the bottle, and also the point on the pipe that is fully inside the bottle (on my bottle, it’s about 1-1/4 inches in).

bottle adapter marked

Drill holes in the pipe on the 2nd line (the one that will be inside the bottle). These holes allow the water to drain from near the neck of the bottle into the plumbing.

drillling drain holes in the bottle adapter

Step 4: Build the nozzle assembly

Starting with the tee in the middle (which has slip fittings on the ends and a threaded fitting in the middle), we’ll consider each leg of the tee a separate assembly.

Here’s the nozzle assembly. It consists of the nozzle (the threaded cap you drilled earlier), a 4 inch nipple, a threaded ball valve, another 4 inch nipple, then the tee. Assemble these pieces using teflon tape.

nozzle assembly layout

Step 5: Build the fill assembly

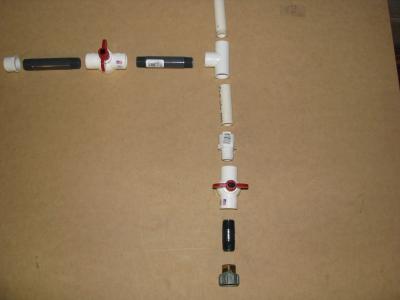

Next is the fill assembly. Starting with the tee, it consists of the following pieces: 3 inch PVC pipe, adapter (female slip to male threaded), threaded ball valve, 2 inch nipple, and 1/2 female hose adapter (1/2″ female threaded to garden hose). Assemble the threaded joints with teflon tape, then use PVC primer and cement to attach the PVC pipe to the tee and the adapter.

fill assembly

Step 6: Build the bottle attachment

Take the bottle adapter that you created earlier and cement it into the remaining leg of the tee. Also cement the bottle onto the adapter. The bottle isn’t made of PVC, but using the PVC cement seems to work.

bottle attachment

Step 7: Wait!

Be patient. Give the PVC cement a couple of hours to set up. The plumbing is going to be under high pressure, so don’t cheat!

Ready, aim, fire!

Here’s a video of my lovely wife demonstrating:

More pictures are available in the photo gallery.
